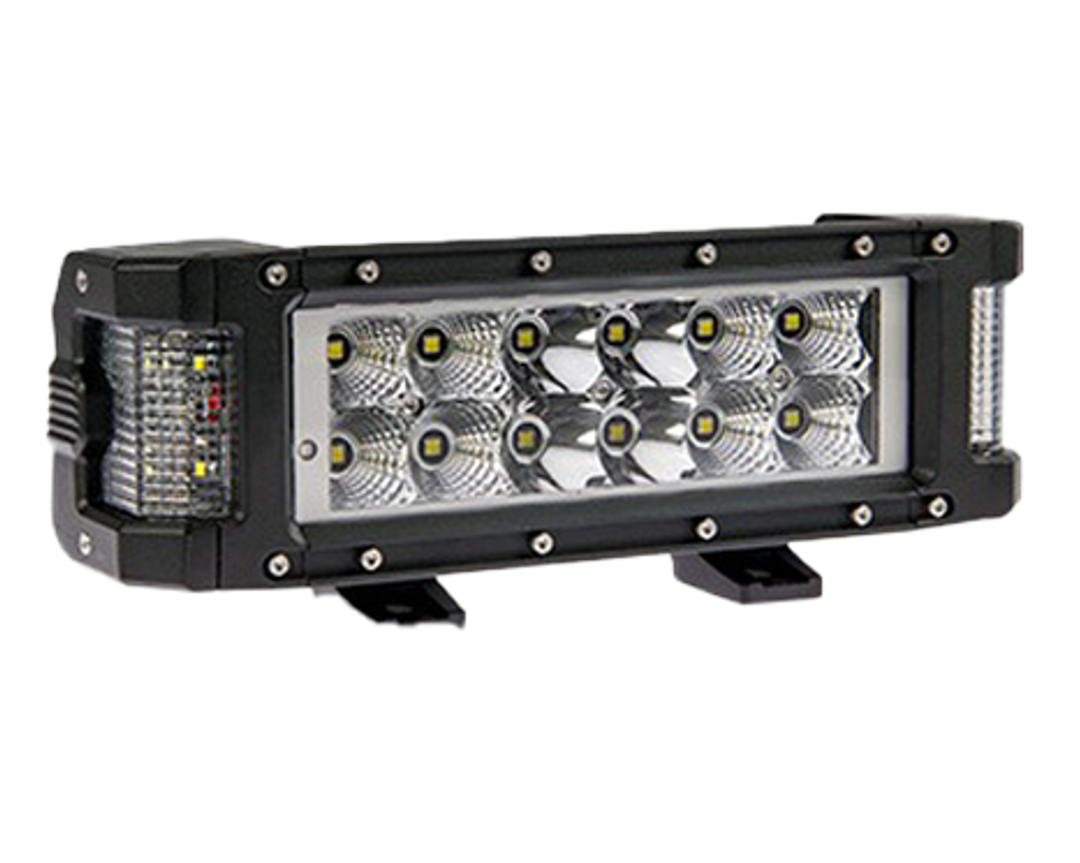

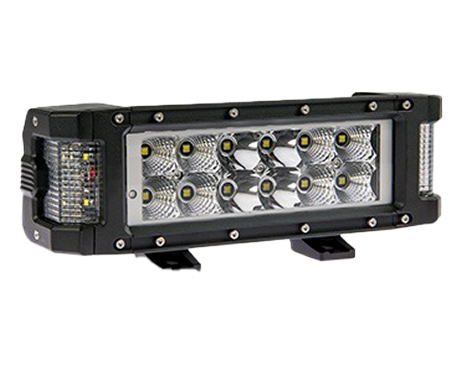

W-Light ATV Sideshooter 7200Lm/5700K
Heated combo beam with side shooters, perfect for ATVs and snowmobiles. Read more
Product overview
The W-Light ATV Sideshooter delivers 7200 theoretical lumens with a combination beam and integrated side-shooting LEDs. With a heated lens, DT connector, and rugged build, it’s the ultimate upgrade for snowmobiles and ATVs in winter conditions.
- kid_starheated glass
What makes it special
- starHeated lens keeps snow and ice from building up

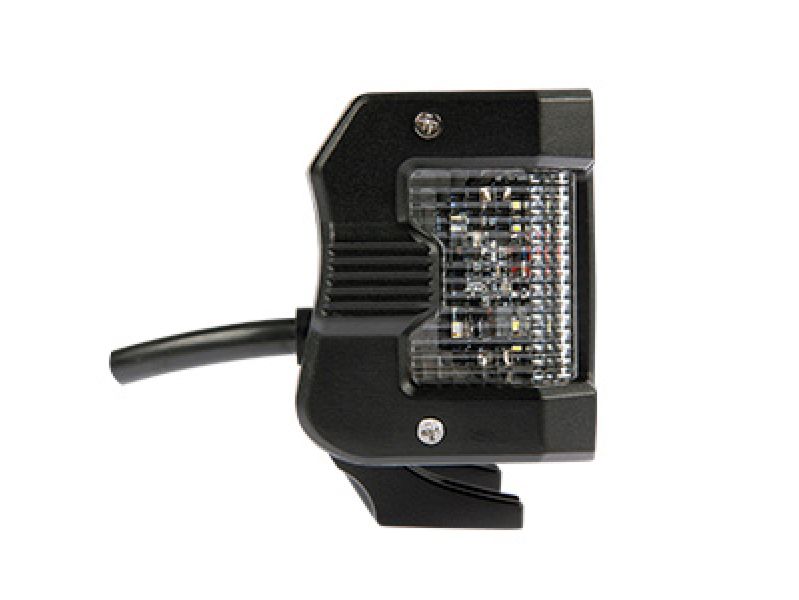

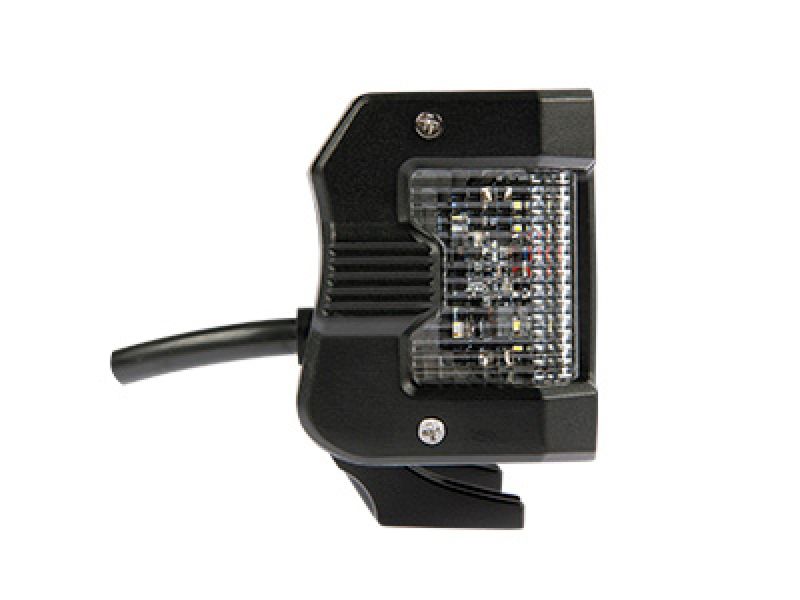

- starSide-shooting LEDs enhance peripheral visibility
- starDesigned specifically for snowmobiles and ATVs
- starIP67/IP69K rated for extreme weather resistance
Specifications
- Dimensions
- 79 x 253 x 63 mm
- IP Classification
- IP68
- Voltage
- 10-30 V
- Power Consumption
- 65 W
- Lumens (factory)
- 7200 Lm
- Light Temperature
- 5700 K
- Shape
- Bar/Panel
- Color
- Black
- Plug Type
- 2-pin DT
- EAN
- 6438255038358
- Certificates
- R10
- Warranty
- 12 months
- SKU
- 1605-NS3835
About W-Light ATV Sideshooter 7200Lm/5700K
The W-Light ATV Sideshooter is designed with winter and wilderness conditions in mind. This compact yet powerful LED bar delivers a wide-reaching combination beam paired with side-shooting LEDs—ideal for snowmobiles, ATVs, and other off-road vehicles that operate in harsh terrain and poor visibility.
Powered by 12 OSRAM LEDs up front and 8 additional OSRAM LEDs aimed to the sides, the Sideshooter outputs 7200 theoretical lumens at 5700K, casting a crisp white light to both the road ahead and surrounding area. With a lux reading of 248 at 10 meters, it ensures great coverage in tight forest trails or wide-open snowfields.
The standout feature is its heated polycarbonate lens, which actively resists snow and ice buildup, keeping the light output clean even in sub-zero environments. The aluminium housing is sealed to IP67 and IP69K standards for maximum water, snow, and pressure resistance.
It comes ready with a Deutsch DT plug, rubber cabling, and adjustable brackets that make mounting straightforward. While certified with ECE R10, this model is not road-legal under ECE R112—it’s built specifically for off-road utility, not highway driving.
Other info:
- LED setup: 12 forward-facing OSRAM LEDs + 8 side-shooting OSRAM LEDs
- Beam type: Combination beam + side shooter
- Lens material: Heated polycarbonate lens
- Housing material: Aluminium
- Mounting: Adjustable brackets included
- Designed for: ATVs and snowmobiles
- Not ECE R112 approved – not legal for on-road driving
- Model name: ATV Sideshooter
Weight: 1.70 kg (net)
Get a good look at W-Light ATV Sideshooter 7200Lm/5700K
Installation Guidelines
The product comes with all necessary instructions. However, we recommend consulting a professional to ensure proper installation.
