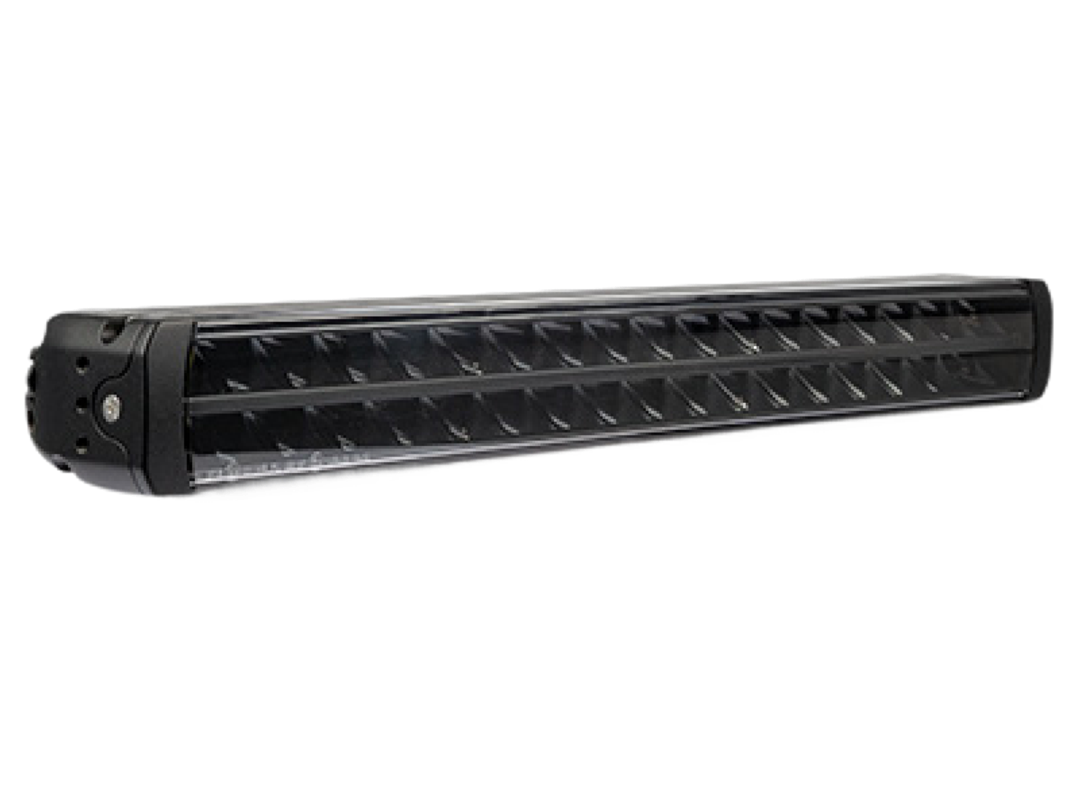

W-LIGHT Impulse III 15120Lm/5000K
A compact 527 mm LED bar with 11400 lm tested output and 549 m beam reach. Read more
Product overview
The W-LIGHT Impulse III is a compact yet exceptionally powerful LED bar, producing 15120 lumens (11400 lm tested) with 36 Osram LEDs. Its optimized 5000 K beam ensures eye comfort, excellent color rendering and clear visibility for details, while a measured reach of 1 lux at 549 m places it among the strongest in its class. Certified to R10 and R112, it’s designed for performance and reliability.
- kid_starCost-efficient
- kid_starPowerful
What makes it special
- starCompact housing with extreme 11400 lm tested brightness.
- starLong 549 m beam reach ensures top-class visibility.
Specifications
- Dimensions
- 57 x 527 x 75 mm
- IP Classification
- unknown
- Voltage
- 10-32 V
- Power Consumption
- 180 W
- Lumens (factory)
- 15120 Lm
- Lumens (tested)
- 11400 Lm
- Light Temperature
- 5000 K
- Lux
- 1 lux @ 549 m lux
- Shape
- Bar/Panel
- Color
- Black
- Plug Type
- 2-pin DT
- EAN
- 6438255038433
- Certificates
- R10, R112
- Warranty
- 12 months
- SKU
- 1605-NS3843
About W-LIGHT Impulse III 15120Lm/5000K
The W-LIGHT Impulse III is built to deliver serious power in a compact housing. With 36 high-quality 5 W Osram LEDs, it produces 15120 lm (11400 lm tested), giving drivers a bright, balanced beam with a reach of 1 lux at 549 m. The 5000 K color temperature provides a neutral daylight-like light that reduces eye strain and improves detail recognition, especially while night driving in difficult conditions.

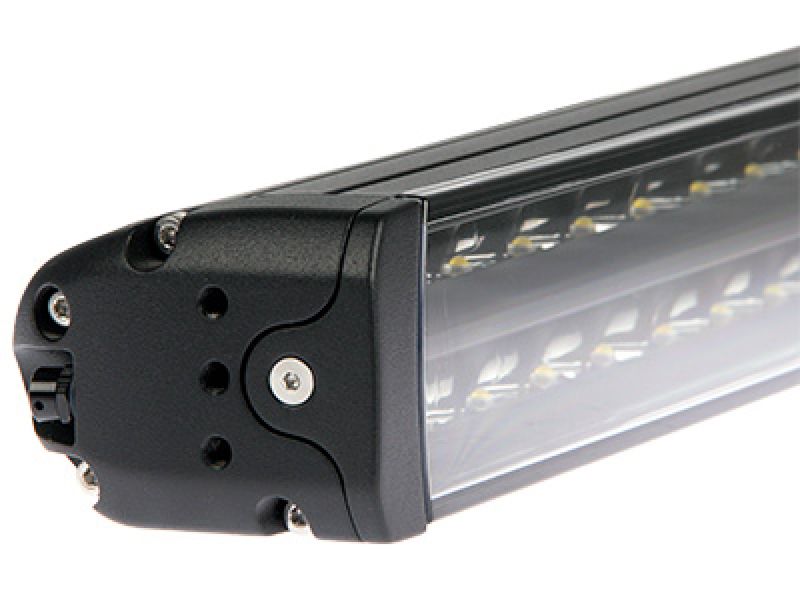

This model’s optical design creates an even light distribution, avoiding harsh cut-offs while delivering maximum forward illumination. Its slim and durable aluminum housing, combined with a tough polycarbonate lens, makes it also suited for off-road conditions.
Installation is easy and versatile: side, top and bottom mountings are all available. The long 2.2 m cable and 2-pin DT connector make wiring secure and flexible.
Certified under R10 and R112 with reference 2 × 40, the Impulse III is road-legal and supported by a 12-month warranty. For drivers, fleets, and professionals seeking uncompromised long-range visibility in a compact form, the Impulse III stands out as one of the most powerful options in its size range.
Other info:
- Model name: Impulse III
- LEDs: 36 × 5 W Osram
- Mounting options: Side, bottom, top
Get a good look at W-LIGHT Impulse III 15120Lm/5000K
Installation Guidelines
The product comes with all necessary instructions - and has versatile mounting options (top, side, bottom). However, we recommend consulting a professional to ensure proper installation.
