W-LIGHT Surge Super Slim 20 9200Lm/5000K
Ultra-slim LED light bar with 9200 lm output, dual position light, and long reach up to 508 m. Read more
Product overview
The W-LIGHT Surge Super Slim 20 combines powerful performance with a low-profile design. Delivering 9200 lumens (8300 lm tested) and a 5000 K daylight color tone, it ensures clear long-range visibility with a 1 lux reach up to 508 m. Certified for road use (R148, R149, R10) and built with an aluminum housing and polycarbonate lens, it is designed to withstand demanding conditions while maintaining a stylish, slim look.
- kid_starLow profile
- kid_starParking light
What makes it special
- StarSlim yet powerful design fits most vehicle fronts.

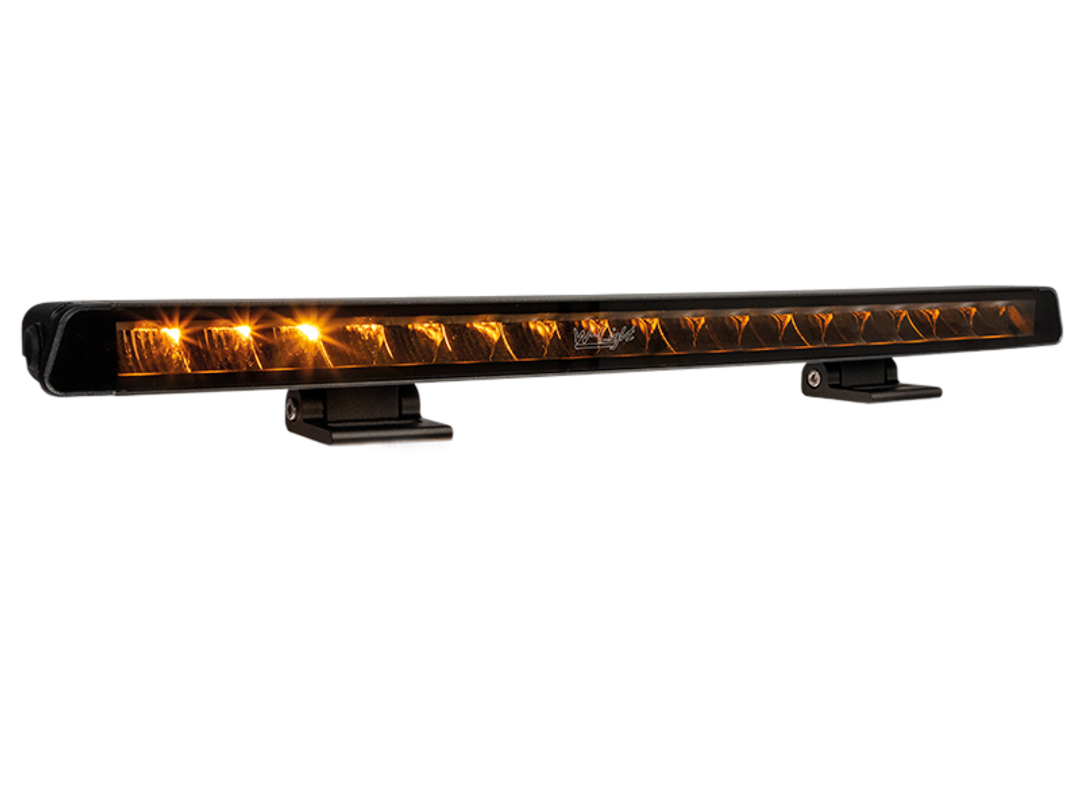

- starDual-color position light (white/amber) adds style and visibility.
- starLong beam reach (up to 508 m at 1 lux) for enhanced safety.
Specifications
- Dimensions
- 33 x 538 x 59 mm
- IP Classification
- IP68/69K
- Voltage
- 9-36 V
- Power Consumption
- 5 W
- Lumens (factory)
- 9200 Lm
- Lumens (tested)
- 8300 Lm
- Light Temperature
- 5000 K
- Lux
- 1 lux @ 373 m / Double up 1 lux @ 508 m lux
- Shape
- Bar/Panel
- Color
- Black
- Plug Type
- 4-pin DT
- EAN
- 6438255038778
- Certificates
- R148, R149, R10
- Warranty
- 24 months
- SKU
- 1605-NS3877
About W-LIGHT Surge Super Slim 20 9200Lm/5000K
The W-LIGHT Surge Super Slim 20 is a premium LED light bar engineered for drivers who demand high output without compromising on design. With 18 high-efficiency LEDs, it produces 9200 lumens (8300 lumens tested), making it a reliable source of illumination in dark and demanding environments. The 5000 K color temperature delivers a daylight-like tone that reduces eye strain and improves visibility of details on the road or off-road.
Built with a durable aluminum housing and an impact-resistant polycarbonate lens, this bar is protected with IP68/69K sealing, ensuring it stands up against dust, heavy rain, and even high-pressure washing. Its slim profile (just 33 mm body height, 47 mm with bracket) allows discreet mounting, making it suitable for vehicles where space is limited or where a sleek look is desired.
In addition to its impressive beam performance — with a measured 1 lux at 373 m and double-up reach of 508 m — the Surge Super Slim 20 comes with dual-color position lights. You can choose between white or amber parking lights, enhancing both safety and style. A robust 4-pin DT connector and a 2.2 m cable simplify installation and ensure reliable power delivery in all conditions.
Certified under R148, R149, and R10 standards, the W-LIGHT Surge Super Slim 20 is fully road legal and backed by a 24-month warranty. Whether you manage a commercial fleet, work in forestry or agriculture, or simply want high-performance lighting for your vehicle, this slim powerhouse delivers durability, style, and top-level visibility.
Other info:
- Model name: Surge Super Slim 20
- LEDs: 18 pcs, white & yellow position light
Get a good look at W-LIGHT Surge Super Slim 20 9200Lm/5000K
Installation Guidelines
The product comes with all necessary instructions.
However, we recommend consulting a professional to ensure proper installation.
