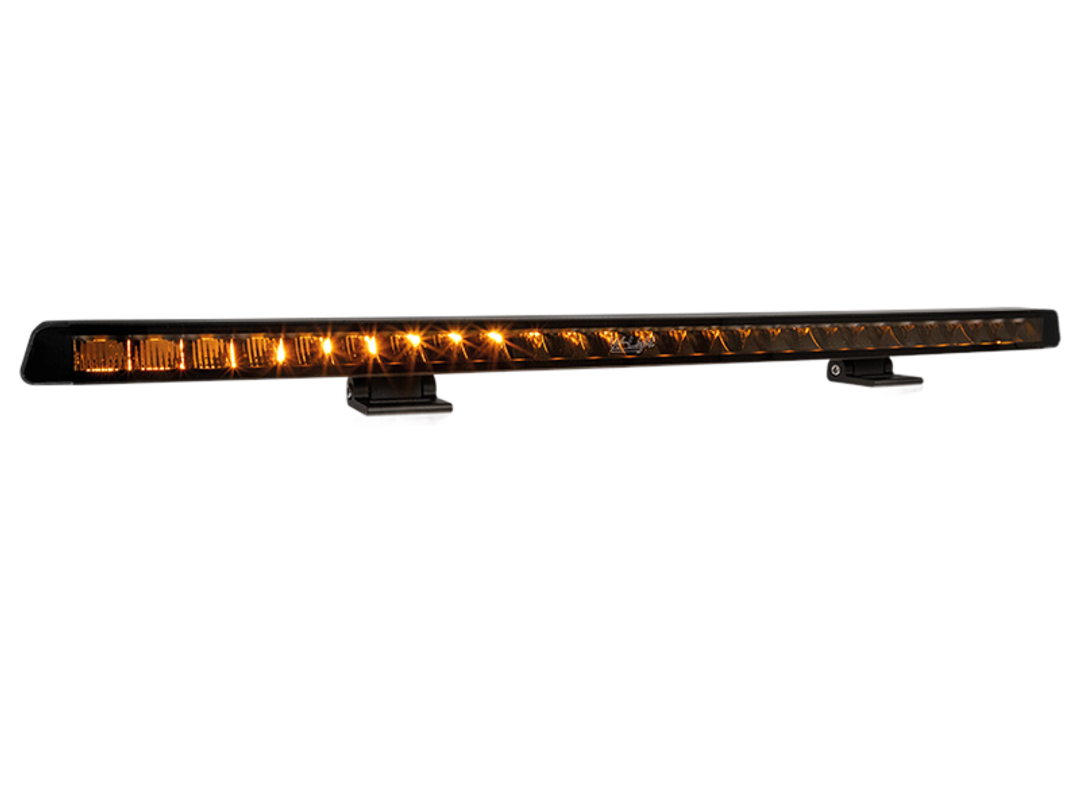

W-LIGHT Surge Super Slim 40 19400Lm / 5000K
High-power, low-profile LED bar delivering up to 19400 lm (15830 lm tested), built for maximum reach (554m) and great integration. Read more
Product overview
The W‑LIGHT Surge Super Slim 40 is a high-output LED light bar offering 19400 lumens (15830 lm tested) with a daylight‑white 5000 K beam. Its slender form factor, dual-position LED lighting and impressive reach (362 m at 1 lux, 554 m “double up”) makes it a preferred choice for drivers needing optimal visibility without compromising in sleek design. It features road‑legal certification, rugged materials and is backed by a 24‑month warranty.
- kid_starLow profile
- kid_starParking light
- kid_starPowerful
What makes it special
- starUltra‑slim design with exceptional light output for maximum front-end integration
- starDual-color position lights to enhance both style and visibility
- star“Double-up” beam extending to 554 m, elevating nighttime awareness
Specifications
- Dimensions
- 33 x 1024 x 59 mm
- IP Classification
- IP68/69K
- Voltage
- 9-36 V
- Power Consumption
- 216 W
- Lumens (factory)
- 19400 Lm
- Lumens (tested)
- 15830 Lm
- Light Temperature
- 5000 K
- Lux
- 1 lux at 362 m; double reach (1 lux “double up”) at 554 m lux
- Shape
- Bar/Panel
- Color
- Black
- Plug Type
- 2-pin DTP via a 5-pin cable
- EAN
- 6438255038792
- Certificates
- R148, R149, R10
- Warranty
- 24 months
- SKU
- 1605‑NS3879
About W-LIGHT Surge Super Slim 40 19400Lm / 5000K
Innovating where power meets precision, the W‑LIGHT Surge Super Slim 40 packs an extraordinary 19,400 lm (15,830 lm tested) into a slim and compact 1‑meter housing. Its 5000 K color mimics daylight, enhancing visibility and reducing eye fatigue for the driver. With high‑grade IP68/69K protection.
Despite its slim and sleep design (named “ultra slim” for a reason), it throws its light far — 1 lux illumination up to 362 m, and stretching to 554 m under optimal conditions (“double up” beam). It also includes built-in position-light. Deutsch‑compatible 2‑pin DTP plug, extended cable, and industry certifications (R148, R149, R10) confirm the quality and compliance across European markets. Backed by a 24‑month guarantee, it's an ideal lighting upgrade for professionals across trucking, agricultural, and off‑road applications or just looking for an improved lighting experience.
Other info:
- LEDs: 36 pcs
- Materials: Aluminum housing, polycarbonate lens
- Model name: Surge Super Slim 40

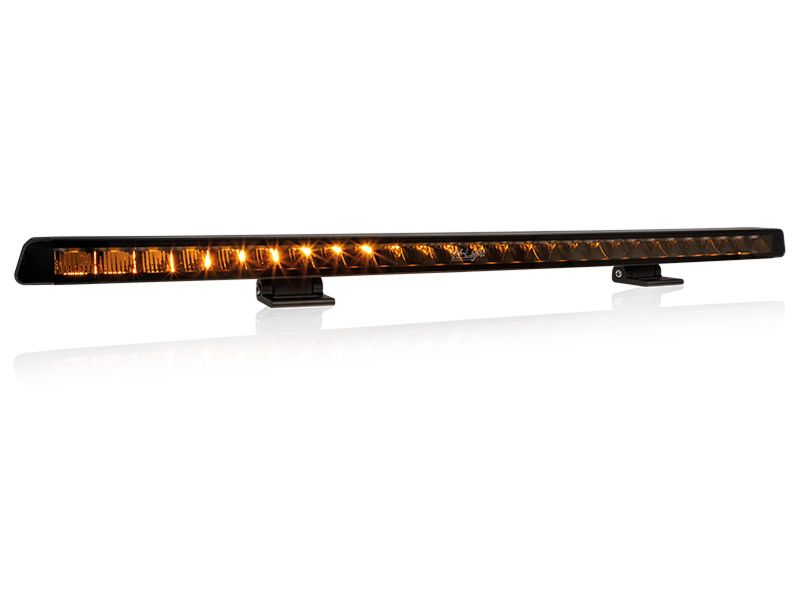

Get a good look at W-LIGHT Surge Super Slim 40 19400Lm / 5000K
Installation Guidelines
This model requires a proper relay for safe, reliable installation. Do NOT connect to AC power. Verify the vehicle’s electrical system matches the product’s voltage requirements. Professional installation is aways recommended.
