W-LIGHT WAVE 500 12–48V 8400Lm/6000K
Slim curved light bar with 8400Lm output and dual mounting options. Read more
Product overview
W-Light Wave 500 is a compact curved auxiliary light bar offering strong visibility with a subtle profile. With 8400Lm of light, 6000K color temperature, and robust IP67 protection, it’s ideal for both commercial and personal vehicle upgrades.
- kid_starCost-efficient
What makes it special
- starStrong 12–48V compatibility covers most vehicle types
- starSleek design for discreet installs
- starIncludes long cable and Deutsch connector for clean wiring
Specifications
- Dimensions
- 532 x 46 x 70 mm
- IP Classification
- IP67
- Voltage
- 12-48 V
- Power Consumption
- 105 W
- Lumens (factory)
- 8400 Lm
- Light Temperature
- 6000 K
- Shape
- Bar/Panel
- Color
- Black
- Plug Type
- 2-pin Deutsch (DT)
- EAN
- 6438255038198
- Certificates
- R10, R112
- Warranty
- 12 months
- SKU
- 1605-NS3819

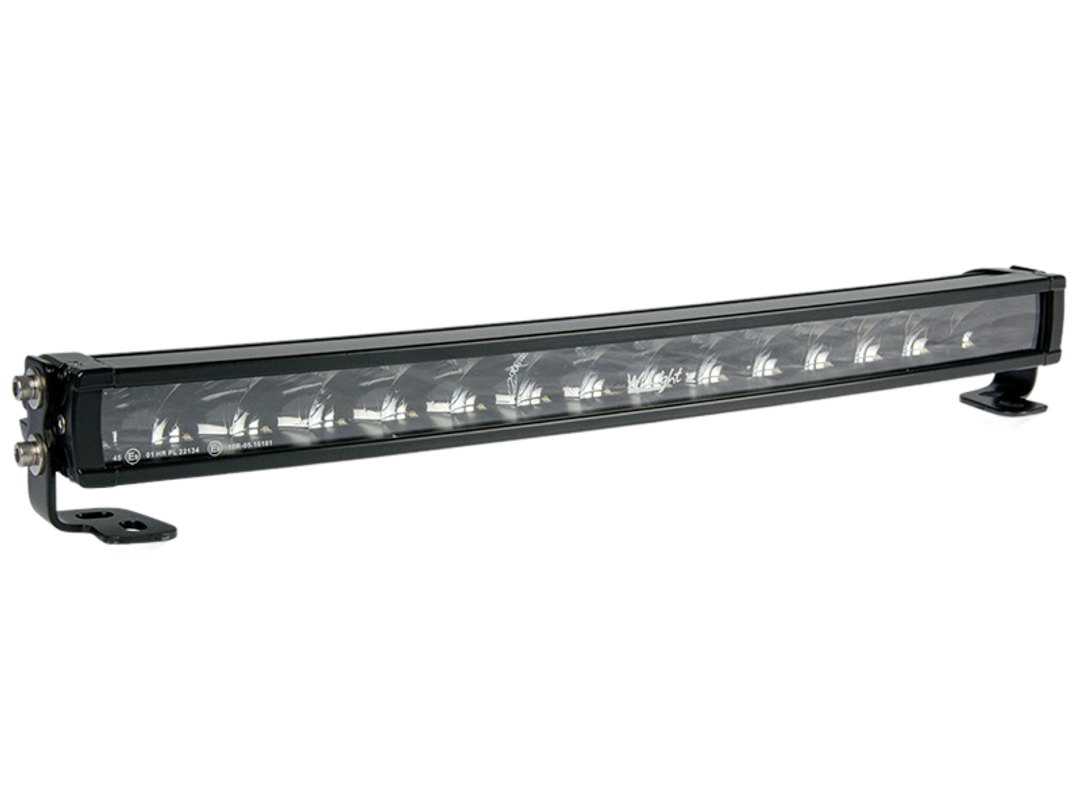

About W-LIGHT WAVE 500 12–48V 8400Lm/6000K
The W-Light Wave 500 combines power and subtlety in one sleek curved bar. Designed for drivers who want serious light output without compromising the clean look of their vehicle, the Wave 500 is compact yet tough.
Powered by 15 CREE LEDs, it outputs 8400Lm at a sharp 6000K, giving you a cool white beam well-suited for both highway and off-road conditions. Its low profile and curved design allow for discreet placement—ideal for modern work vehicles, jeeps, or emergency fleets.
This model is built to last. It’s rated IP67 for protection against water and dust, with a durable housing made for rough environments. The 2.2 m cable comes pre-wired with Deutsch pins and includes a separate housing.
With both bottom and side mounting brackets included, you have flexibility in positioning—on bumpers, roof racks, or specialized mounts.

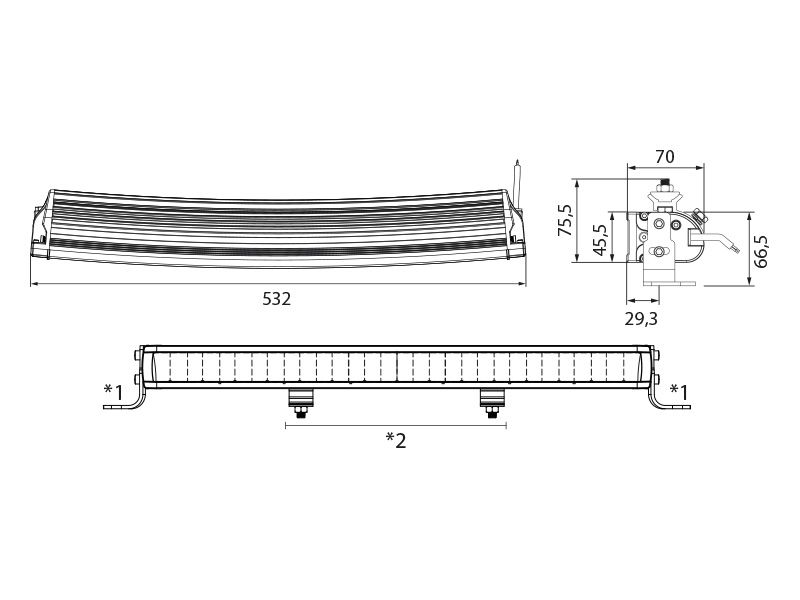

Get a good look at W-LIGHT WAVE 500 12–48V 8400Lm/6000K
Installation Guidelines
The product comes with all necessary instructions. However, we recommend you consult a professional to ensure proper installation
