W-Light Wave II 7600Lm/5000K
Dual-color park light, 6400 lm tested output, and 483 m beam in a slim bar design. Read more
Product overview
W-Light Wave II features 18 Osram LEDs and selectable amber or white park lights. It delivers 6400 tested lumens and reaches 483 meters at 1 lux, with R149 and R148 approvals for safe and versatile use.
- kid_starCost-efficient
- kid_starParking light
What makes it special
- starDual park light: switch between amber and white
- starTested 6400 lm with 483 m beam range
- starCertified to R149, R148, and R10 standards
- starLow-profile design ideal for modern installations
- starSimple install with 4-pin DT connector and 2.2 m cable
Specifications
- Dimensions
- 45 x 532 x 68 mm
- Package
- 110 x 620 x 65 mm
- IP Classification
- IP67
- Voltage
- 12-32 V
- Power Consumption
- 80 W
- Lumens (factory)
- 7600 Lm
- Lumens (tested)
- 6400 Lm
- Light Temperature
- 5000 K
- Shape
- Bar/Panel
- Color
- Black
- Plug Type
- 4-pin DT
- EAN
- 6438255038471
- Certificates
- R149, R148, R10
- Warranty
- 12 months
- SKU
- 1605-NS3847
About W-Light Wave II 7600Lm/5000K
The W-Light Wave II is a modern, high-efficiency LED light bar built for those who demand both performance and flexibility. With a sleek low-profile frame and a dual-color park light (amber and white), it brings style, safety, and powerful visibility to your vehicle.
Equipped with 18 premium Osram LEDs, the Wave II pushes out a factory-rated 7600 lumens, with a tested real-world performance of 6400 lumens. The beam throws light up to 483 meters at 1 lux, ensuring long-distance clarity for both highway and off-road applications.
The light runs on 12–32 V systems and draws just 6.06 amps at 13.7 V, making it suitable for a wide range of vehicles. With an IP67 protection rating, this light bar is ready for all-weather use, while the 4-pin DT plug and 2.2-meter cable provide secure and easy installation.
Backed by R149 and R148 certifications and a 12-month warranty, the Wave II stands out not just in performance, but also in compliance and safety. Whether you need a stylish upgrade or a functional workhorse for night driving, this bar does both.
Other info:
- LED type: 18 x Osram LEDs
- Park light function: Selectable amber/yellow and white
- Model name: Wave II
- Beam reach: 483 m @ 1 lux

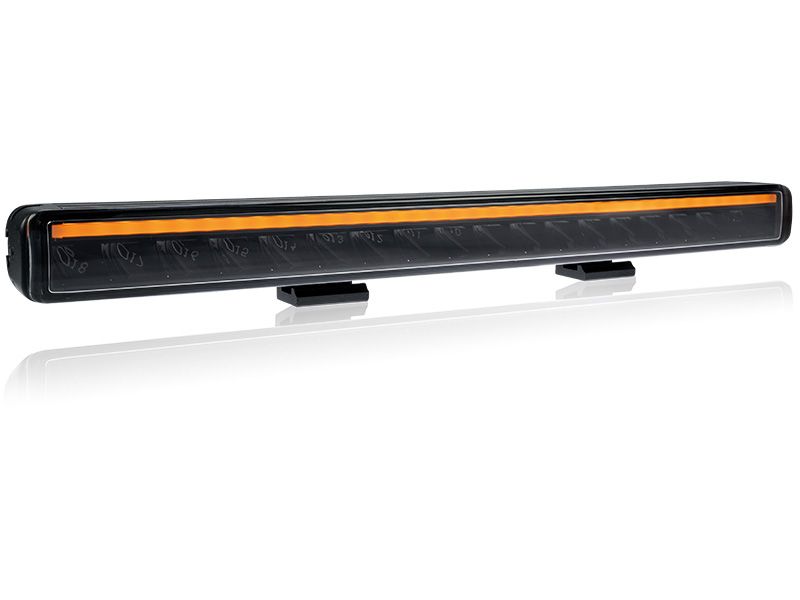

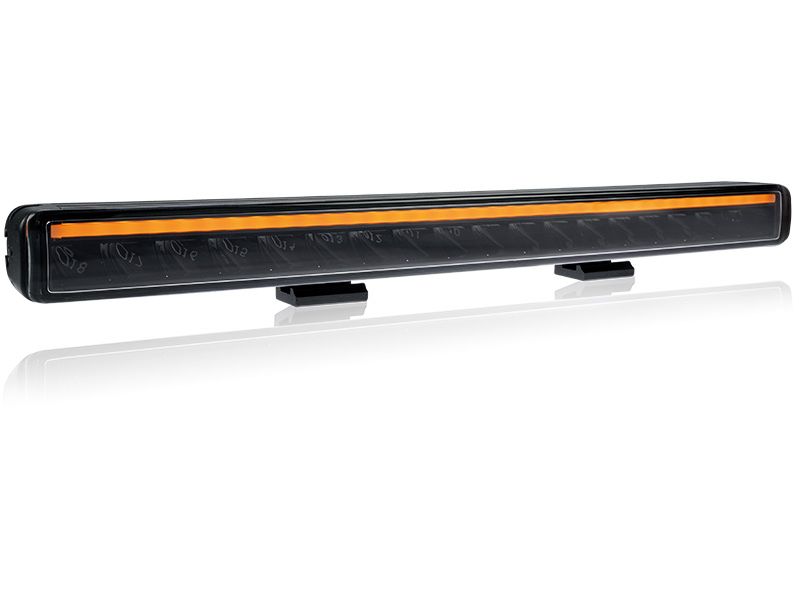

Get a good look at W-Light Wave II 7600Lm/5000K
Installation Guidelines
The product comes with all necessary instructions. However, we recommend consulting a professional to ensure proper installation.
